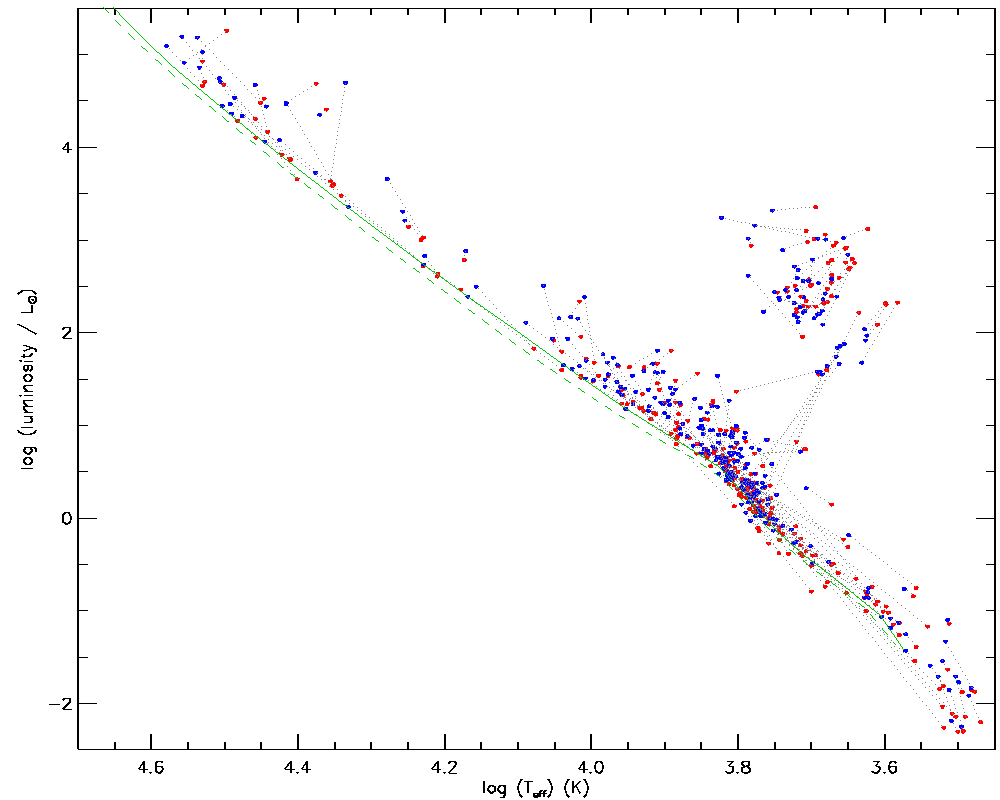

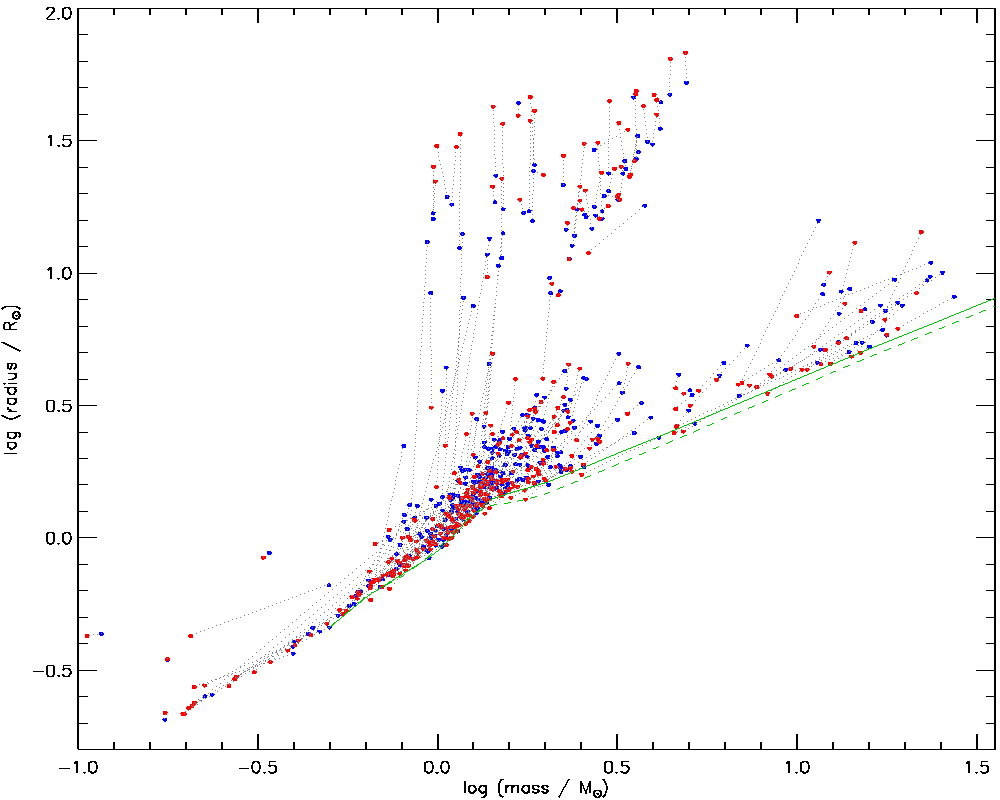

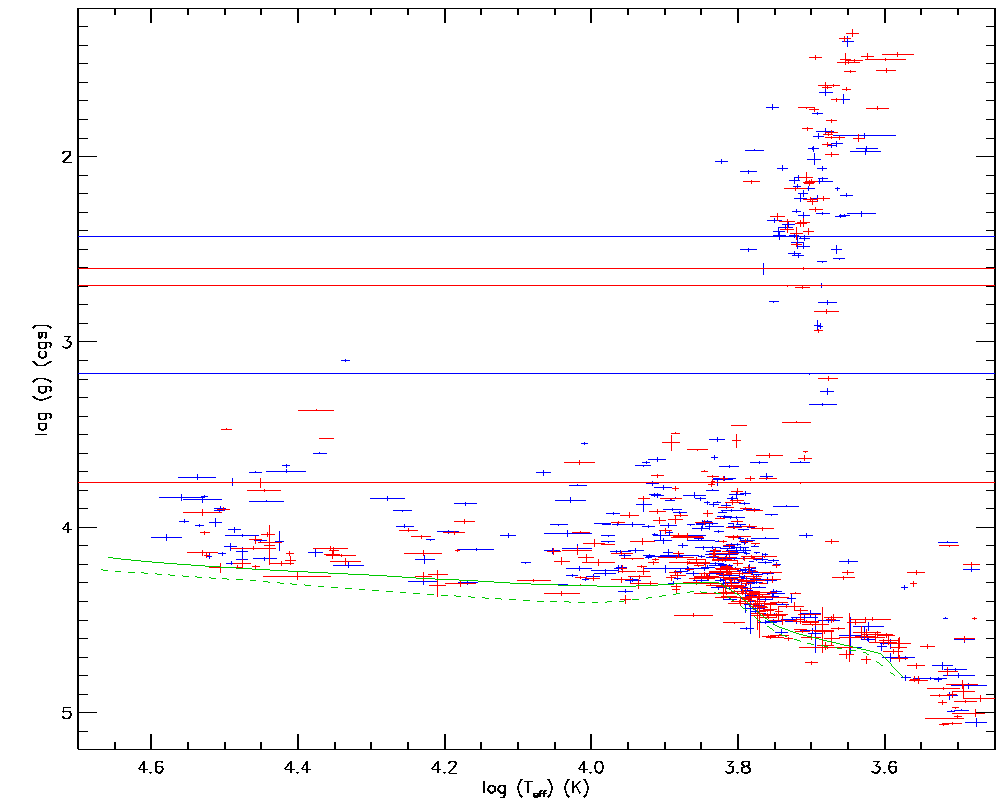

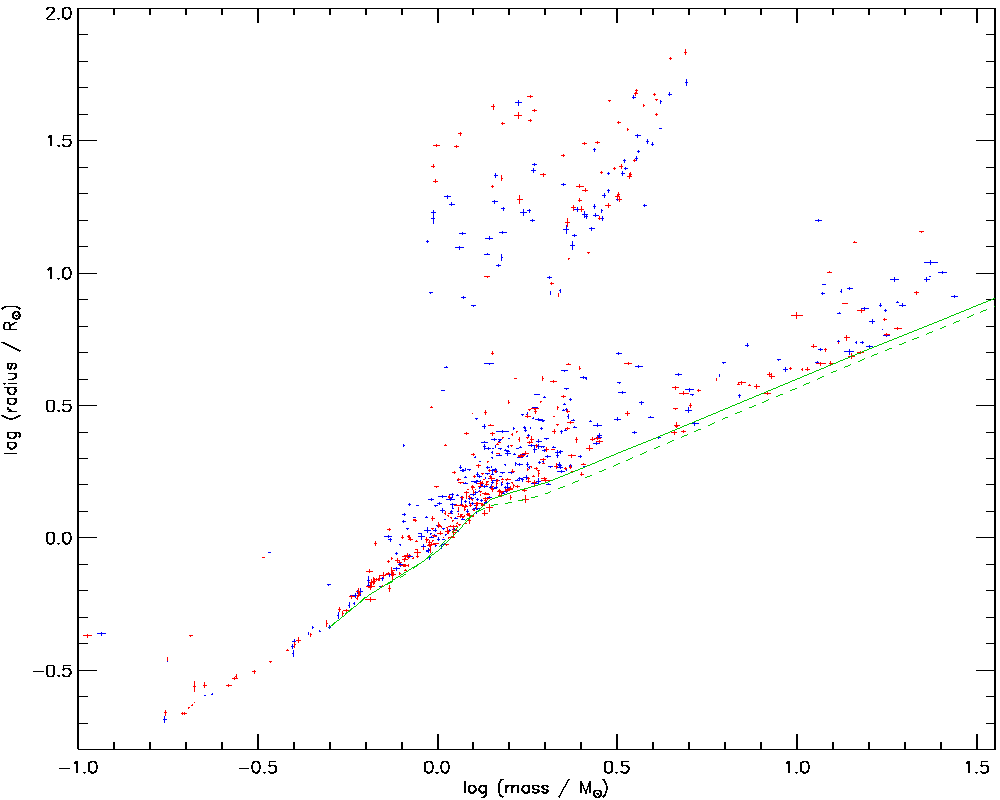

Here are mass-radius, temperature-gravity and Hetzsprung-Russell diagrams for the component stars of well-studied detached eclipsing binaries. Click on each image to get it full-size.
The primary components are plotted in blue and the secondary components in red. Also plotted, in green, are the zero-age main sequence values predicted by the Cambridge theoretical models (Pols et al, 1998MNRAS.298..525P) for fractional metal abundances of Z = 0.02 (solid lines) and Z = 0.01 (dashed lines). On some of the plots the two components of each system are connected with dotted grey lines.
